BICICLETA
ELÉCTRICA
BACK2SCHOOL
RAD MISSION
BICICLETA ELÉCTRICA BACK2SCHOOL RAD MISSION
€1,450.00
* Precio sin IVA y sin transporte
Description
BICICLETA ELÉCTRICA
RAD MISSION
ElectronicA
Battery
48V, 10.5 Ah (504 Wh), with Lithium NMC 18650 (LiNiMnCoO2) Samsung 35e
48V, 10.5 Ah (504 Wh), with Lithium NMC 18650 (LiNiMnCoO2) Samsung 35e
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on both 110V and 230V AC power outlets
Controller
48V, 250W

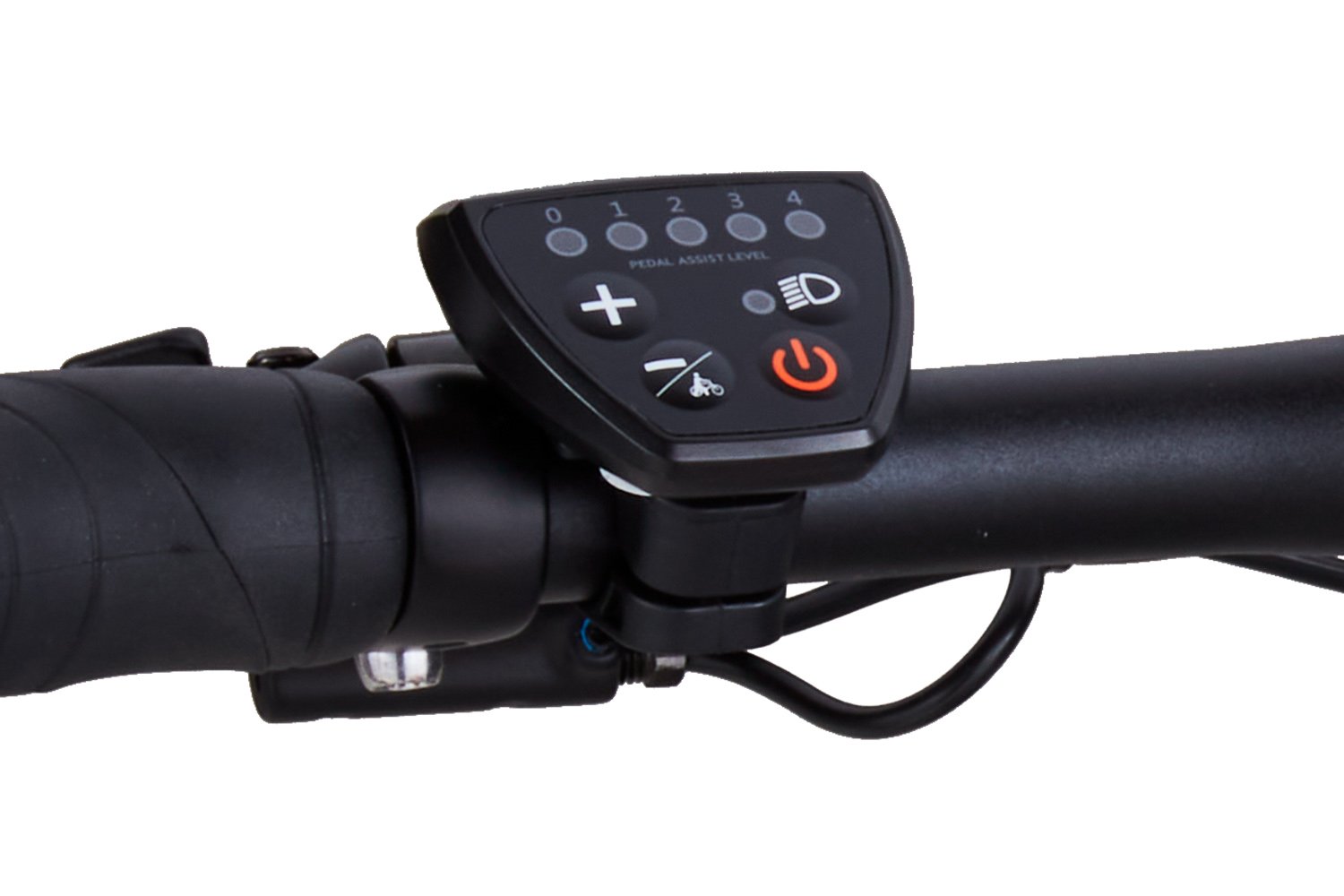

Display
Rad Power Bikes custom LED display
Hub Motor
Geared Hub Motor with 5:1 Planetary Reduction
Geared Hub Motor with 5:1 Planetary Reduction
Lights
Headlight: 40 Lux, Seeing distance: 230 ft (70m), Being seen distance: 2+ mi (3,500m)
Taillights: Integrated taillight with brake light indicator functionality
Pedal Assist
12-magnet, cadence sensing, crank mounted
Range
45 – 80+ km
45 – 80+ km
Throttle
Twist Power Assist
Wiring
Water resistant connectors and wiring harness
USB Ports
None
Geometry & Sizing
Recommended Rider Heights
Mid-Step: 157 cm – 188 cm
High-Step: 178 cm – 195 cm
Mid-Step: 157 cm – 188 cm
High-Step: 178 cm – 195 cm
Frame Size
Mid-Step: 18″ (460 mm)
High-Step: 21.5″ (550 mm)
Handlebar Height
38.5″ (980 mm)
Handlebar Reach
Mid-Step: 14.5″
High-Step: 15″
Seat Height
Mid-Step: 685 mm – 939 mm
High-Step: 762 mm – 990 mm
*Measured from bottom of the pedal stroke
Standover Height
Mid-Step: 711 mm
High-Step: 787 mm
Total Length
Mid-Step: 1795 mm
High-Step: 1803 mm
Wheelbase
1116 mm
1116 mm
Dropout Width
135 mm rear dropout width, 12 mm axle diameter, 10 mm flats
Bottom Bracket Shell Width
68 mm shell, 127.5 mm spindle
Seat Tube Length
Mid-Step: 460 mm
High-Step: 550 mm
Chainstay
470 mm
Handlebar Width
660 mm
660 mm
Crank Length
170 mm
Seatpost Diameter
27.2 mm
Max Tire Width
1.95″
Bike Weight
Mid-Step: 21.5 kg
High-Step: 22 kg
Payload Capacity
125 kg
